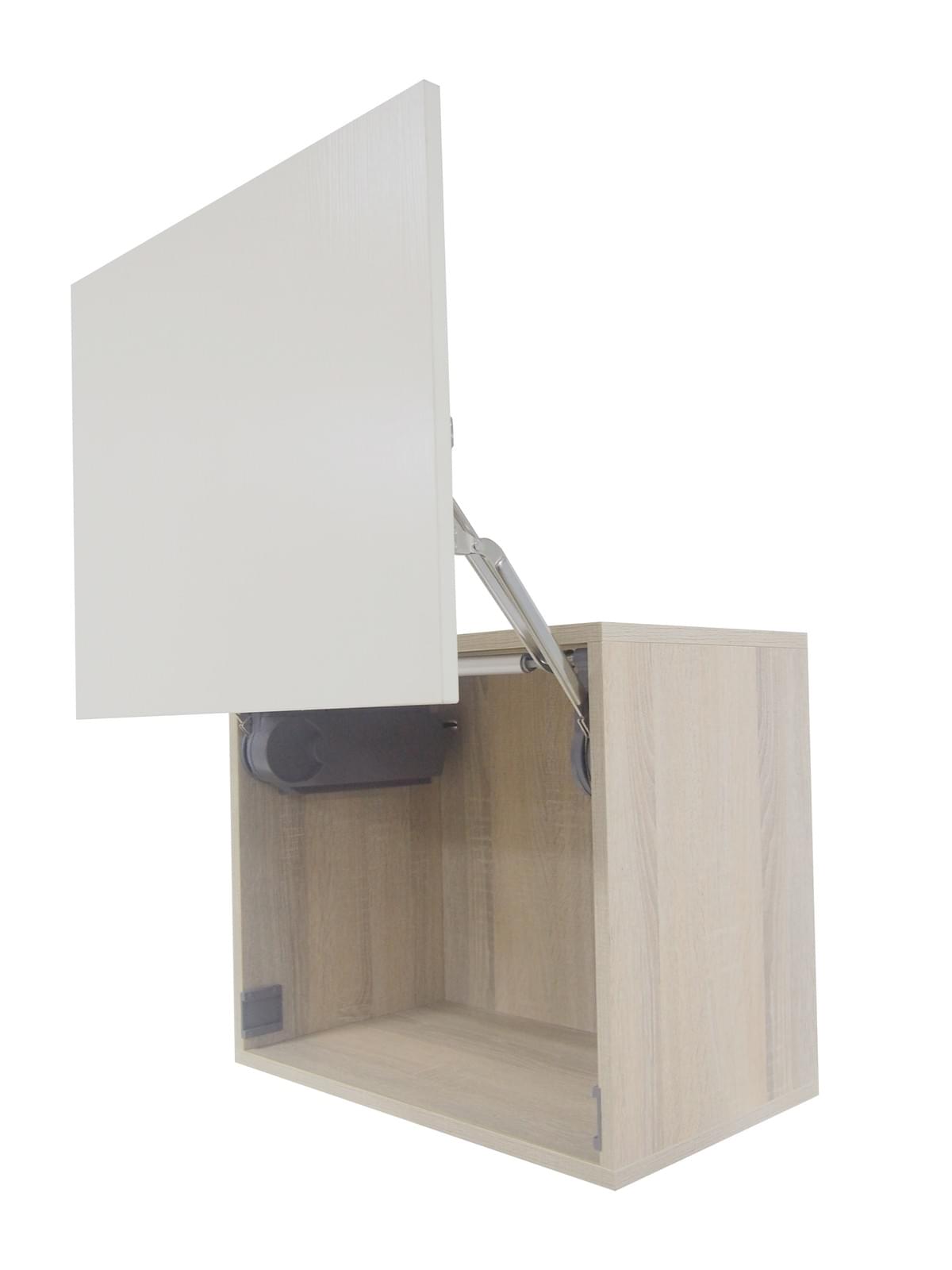

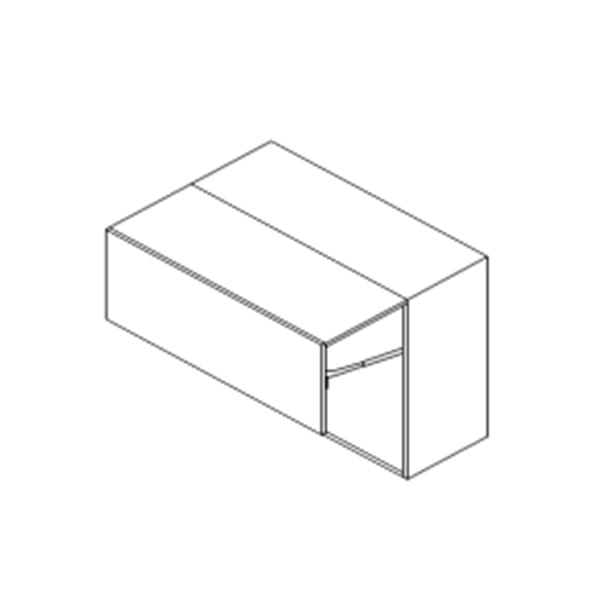

Bi-Fold LiftingSystem
(HF)
The flexibility and variety of the upside-down folding door with lifting system enable it to meet the needs of different occasions.
Kodes LoT
-Smart-

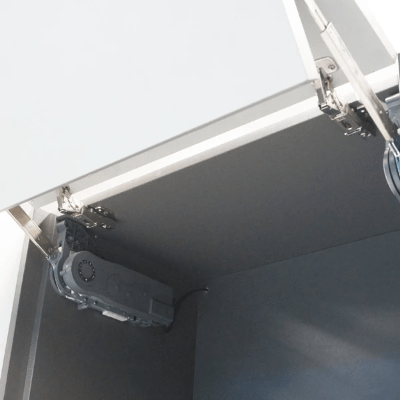

The smart lifting system is the latest development of the company and is more powerful than electric.

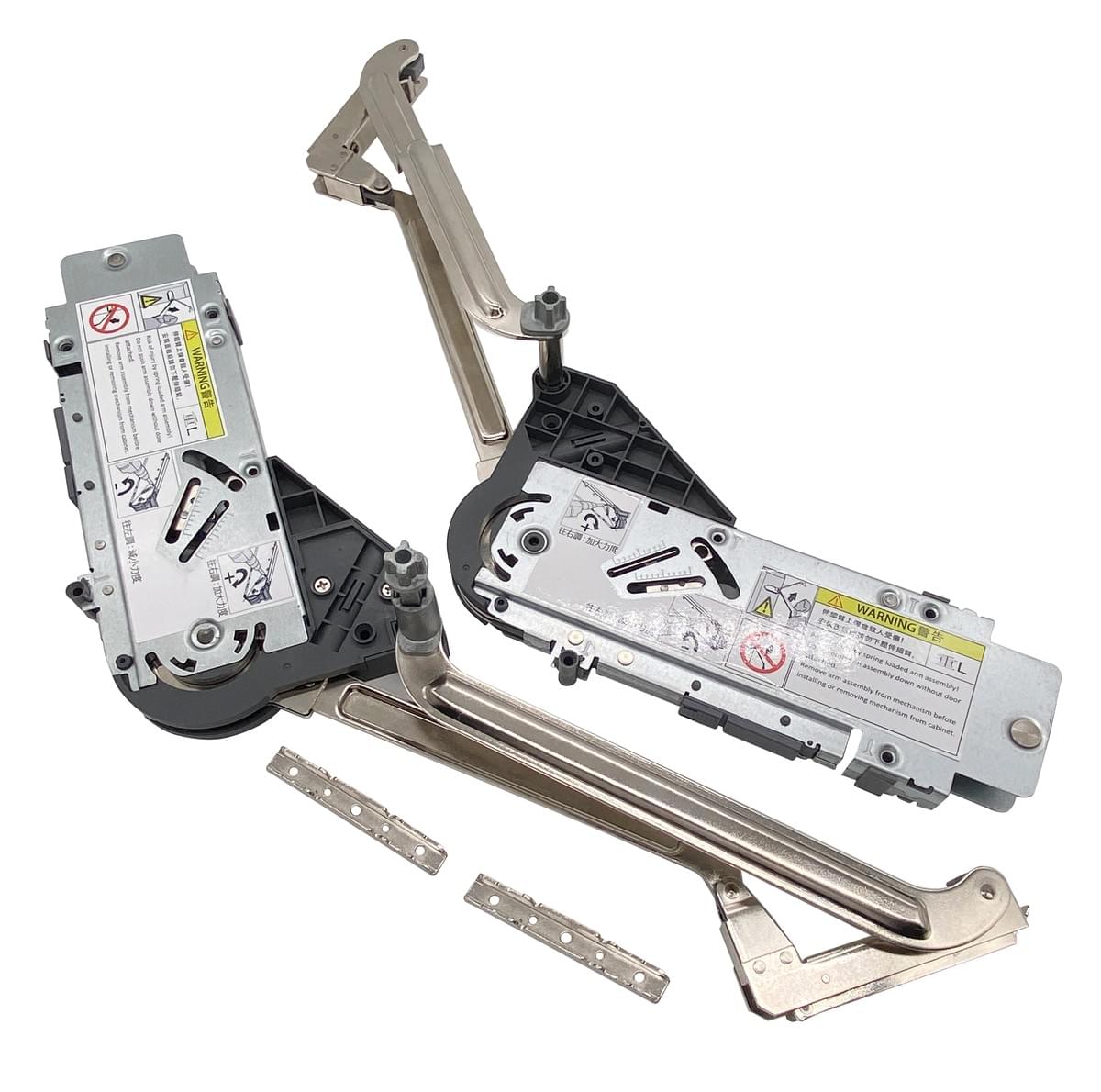

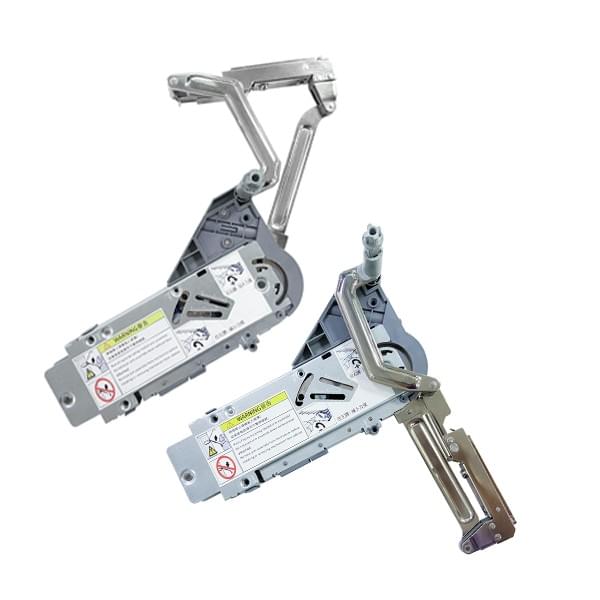

(HF)Bi-Fold Lifting System
constitute
Two support arms support the smooth switch of the cabinet door.

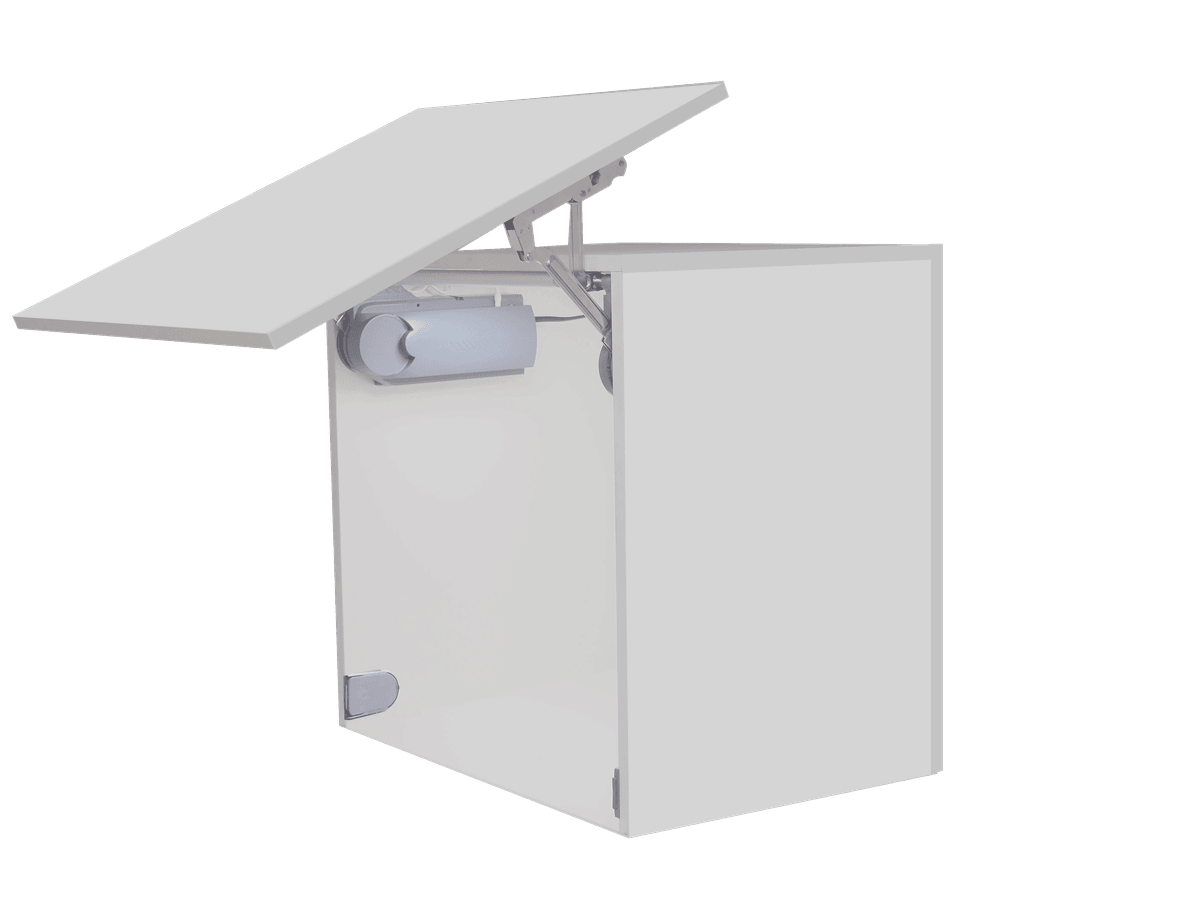

Simple regulation

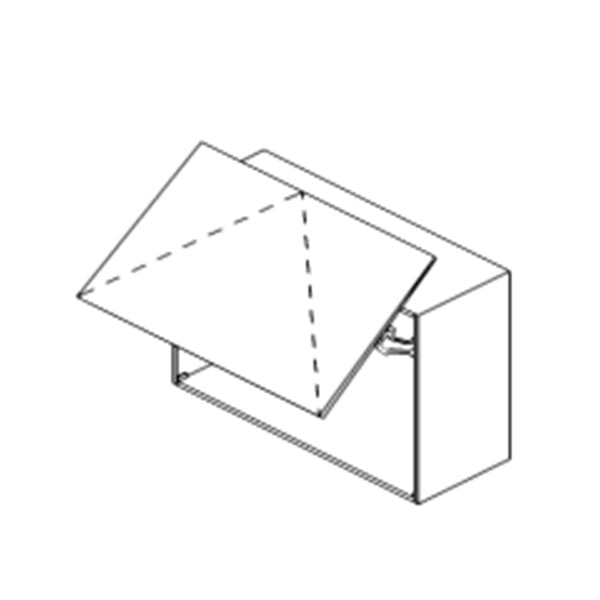

The Swing Up lifting System can be adjusted according to the weight of the cabinet panel to ensure the smooth operation of the door panel.
Easy to observe
When the Swing Up lifting System is turned on, the user can clearly see the inside of the cabinet, which is easy to find and remove items.
(HF)Bi-Fold Lifting System
constitute
Two support arms support the smooth switch of the cabinet door.
Modern exterior design
The Parallel Lifting System has a simple, modern exterior design that is able to coordinate with a variety of architectural styles.
Good sealing effect
The Parallel Lifting System can be tightly fitted to the ground or door frame when closed, creating a good sealing effect.
Lifting System
Bi-Fold
Lifting System
Right Angle
Lifting System

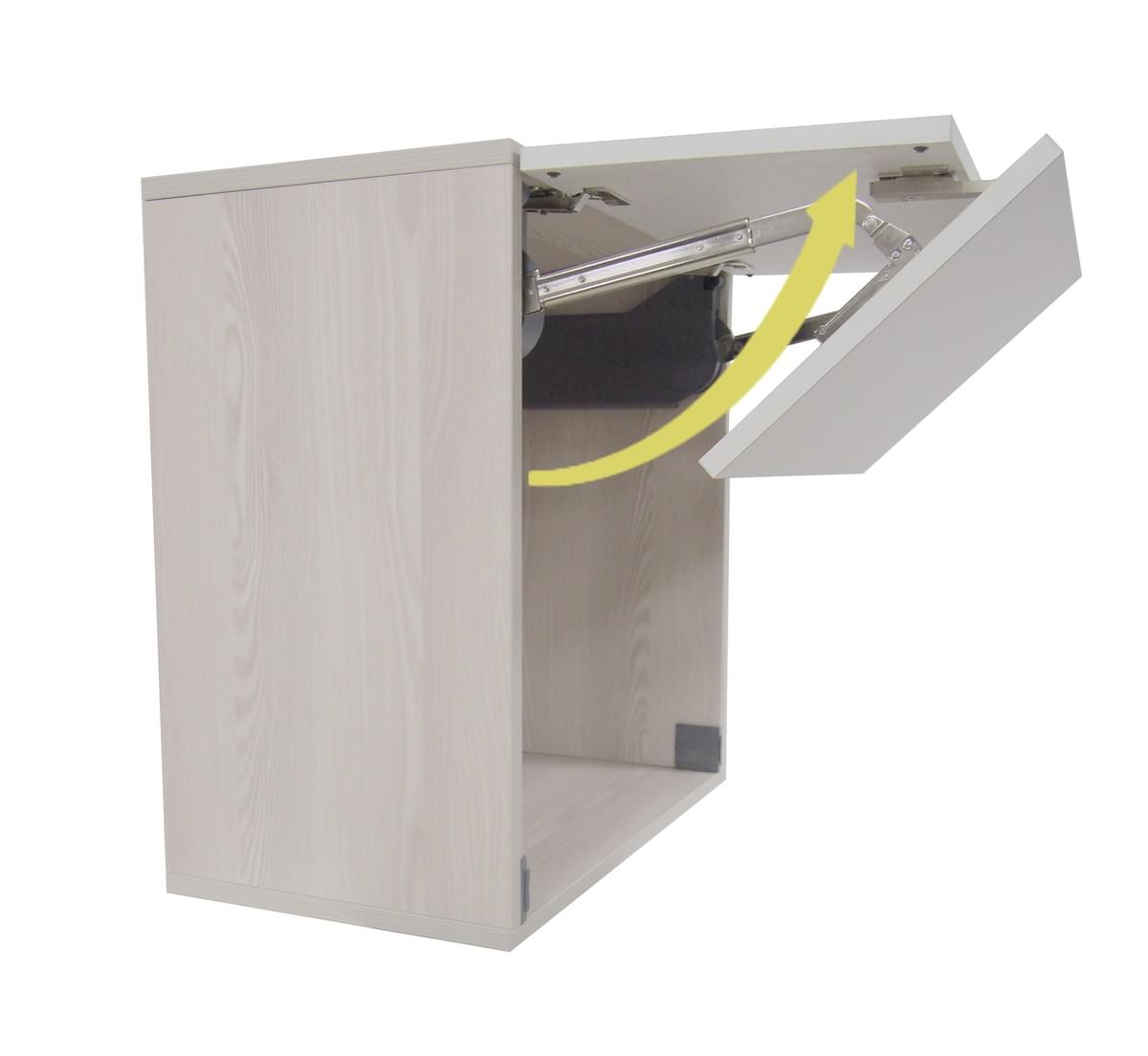

Parallel
Lifting System

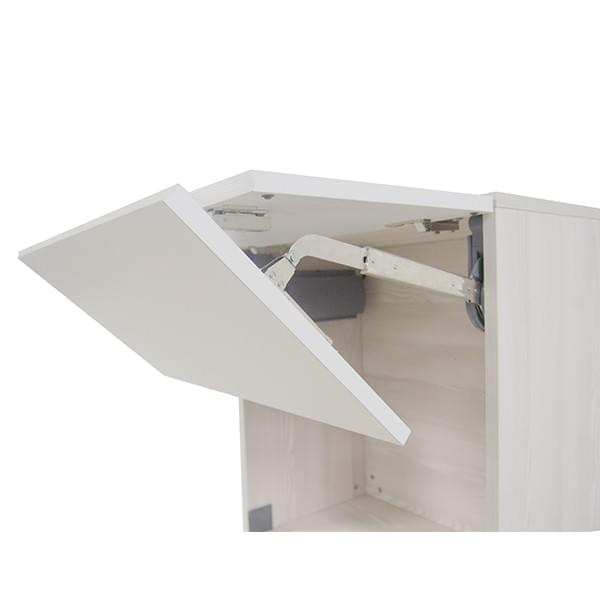

Swing Up
lifting System
Their classification
Full cover hinge
The full cover hinge is also called straight bend and straight arm, and the door panel all covers the phase side panel, and there is a gap between the two.
Inlaid hinge
The built-in hinge is also called the big bend and the big arm. The cabinet door is hidden in the cabinet and is flush with the side panel. It is also necessary to leave a gap so that the door can be opened smoothly, which requires the use of a hinge with a very curved hinge arm.
Half-cover hinge
Half cover hinge, also known as the middle bend, forearm, two doors share a side panel, there needs to be a minimum gap between them, so the hinge arm bend needs to be used, the door will reveal half the cabinet side panel, the opening amplitude is slightly larger than the full cover.
What makes it unique
Let me show you

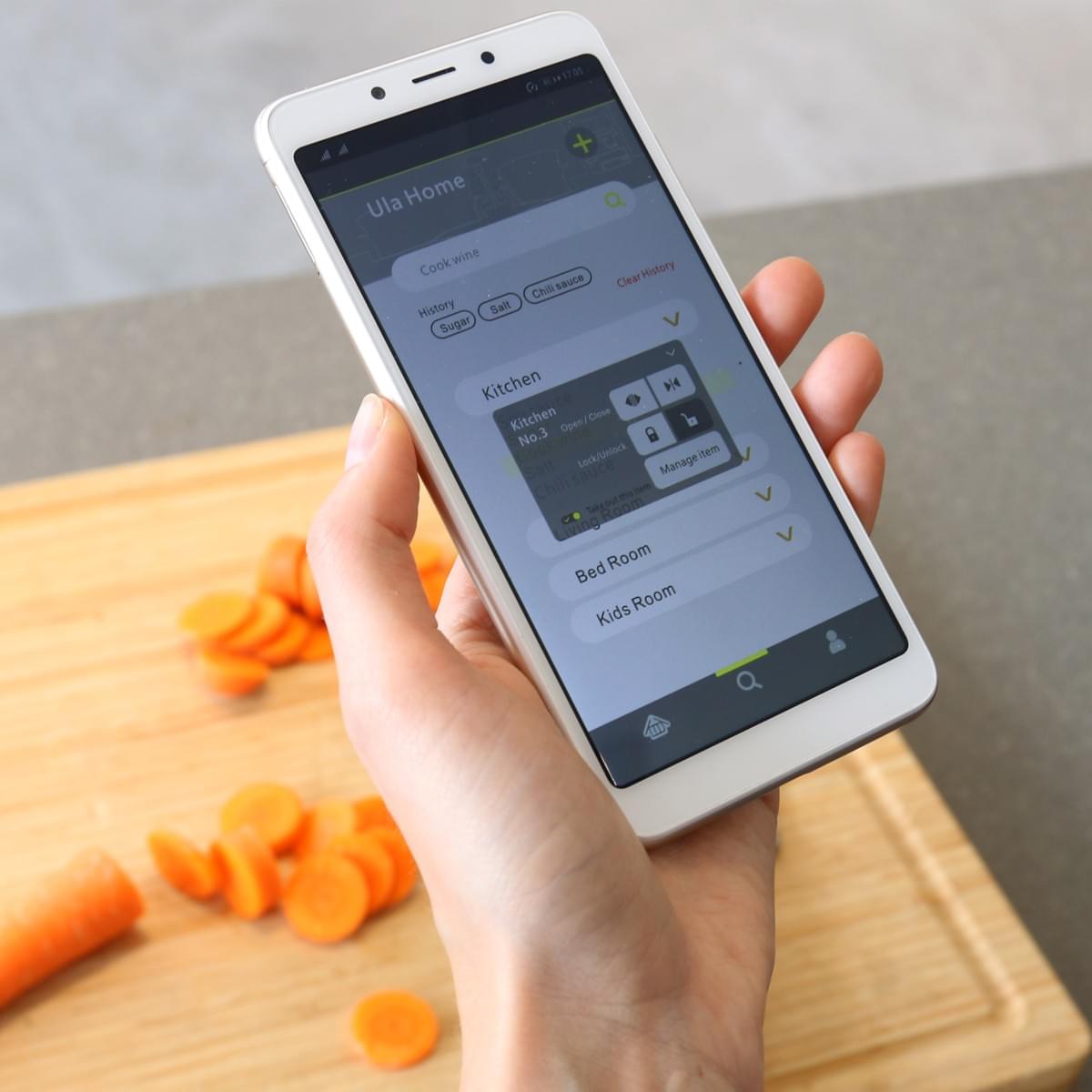

APP remote control
Through the APP software, users can easily control the on-off state of the cabinet at home anytime and anywhere.
Linkage central control
In the central control display, the user can control the switch of the cabinet and the fine management of the cabinet.
Smart home
This integration of smart home provides residents with a more personalized and intelligent life experience.

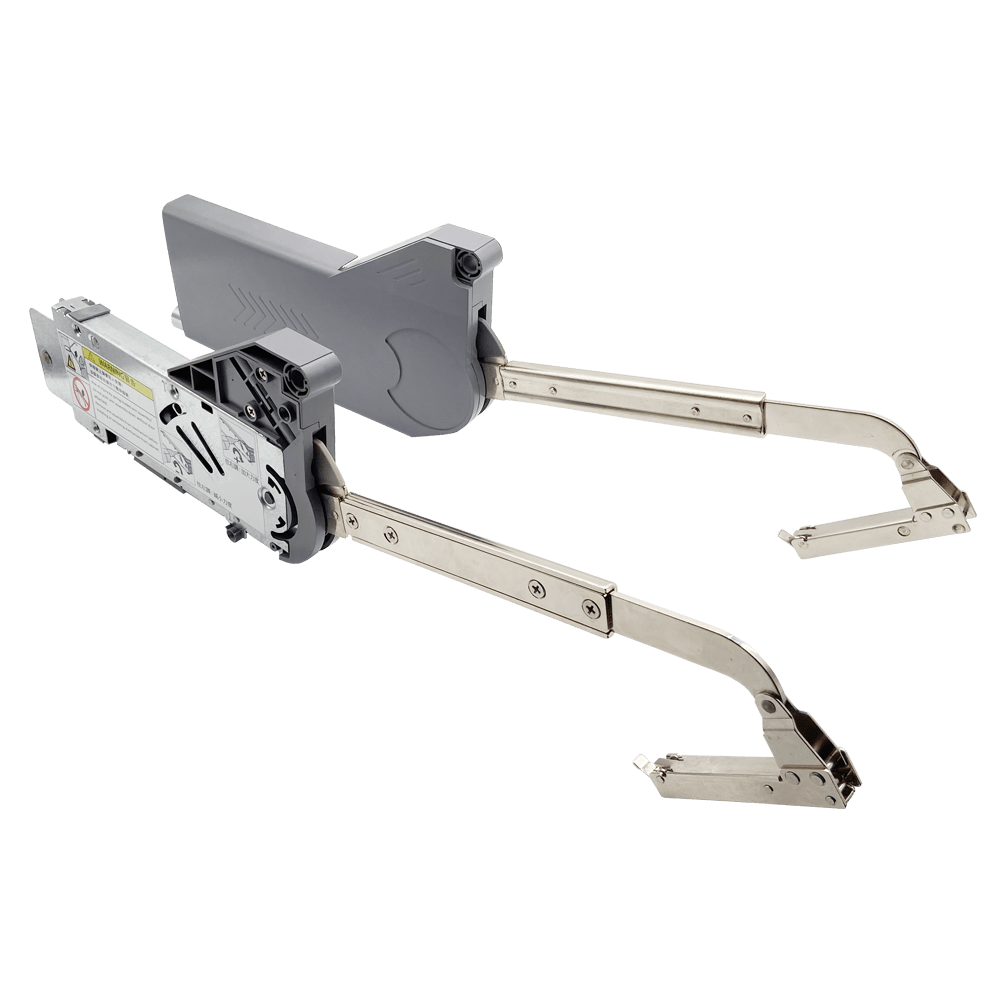

(HF)Bi-Fold Lifting System
constitute
Two support arms support the smooth switch of the cabinet door.
The Angle is 45 degrees
The 45-degree Angle design makes the door more compact when folded, thus saving space.
The Angle is 90 degrees
The 90-degree Angle design makes the door more convenient and fast when folding.

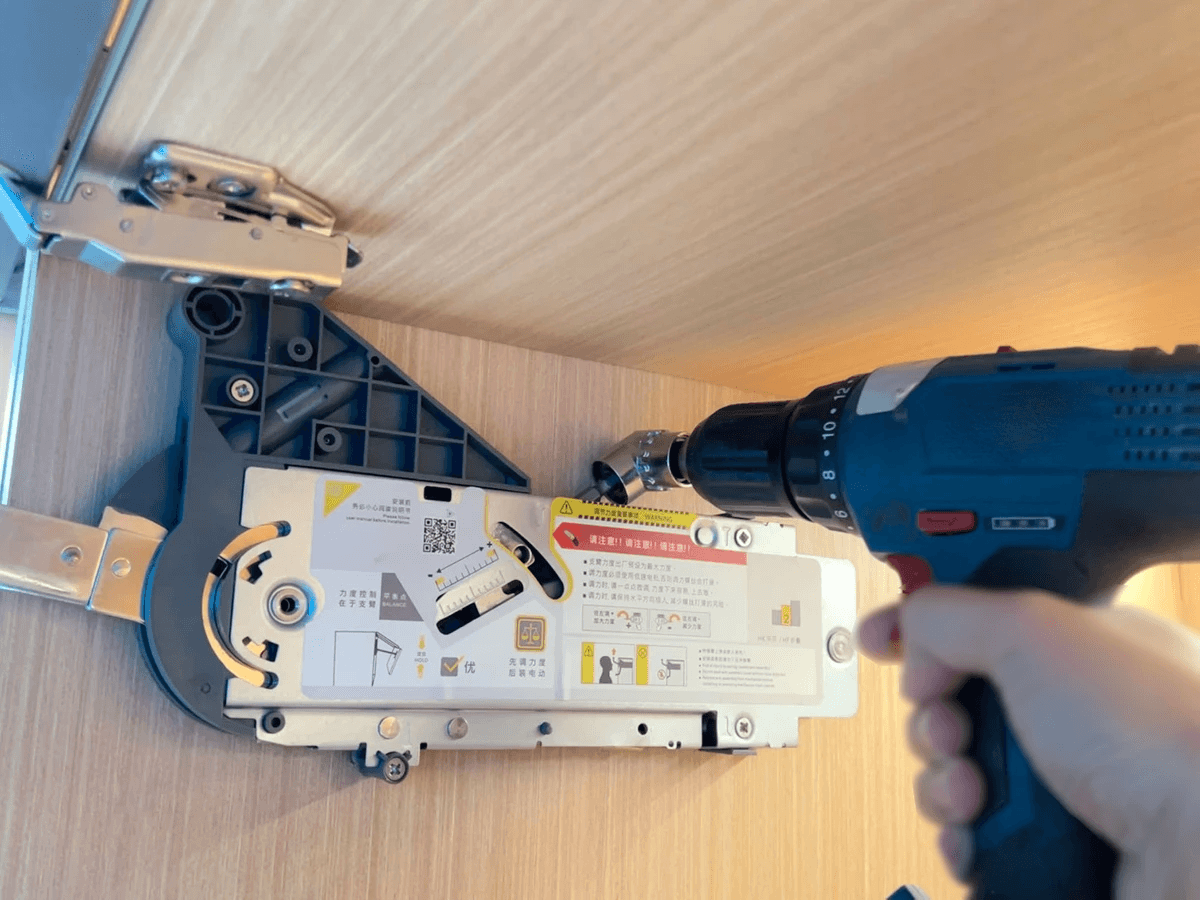

Force adjustment
After the left and right scales are consistent, manually pull the door panel to about 70 degrees. When the hand is loosened, the door panel can slowly bounce back, otherwise it is necessary to readjust the scale on both sides.

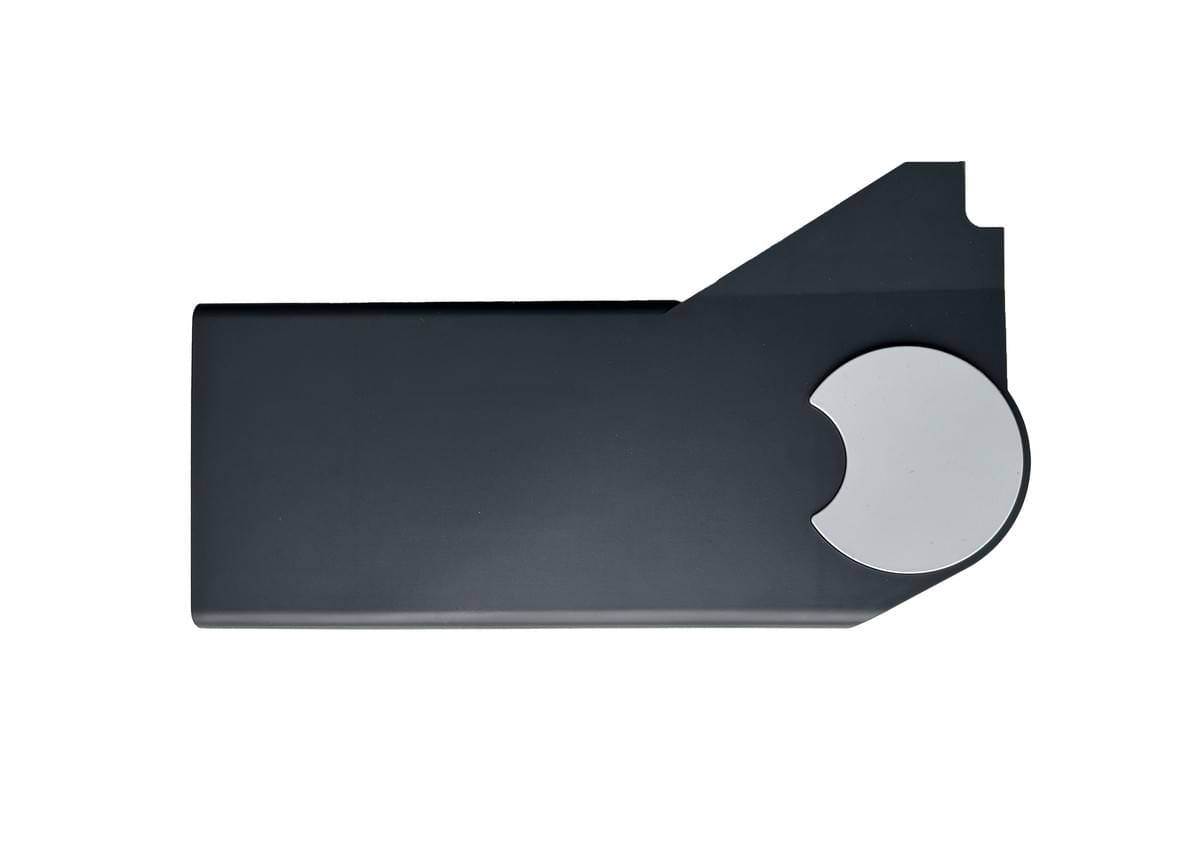

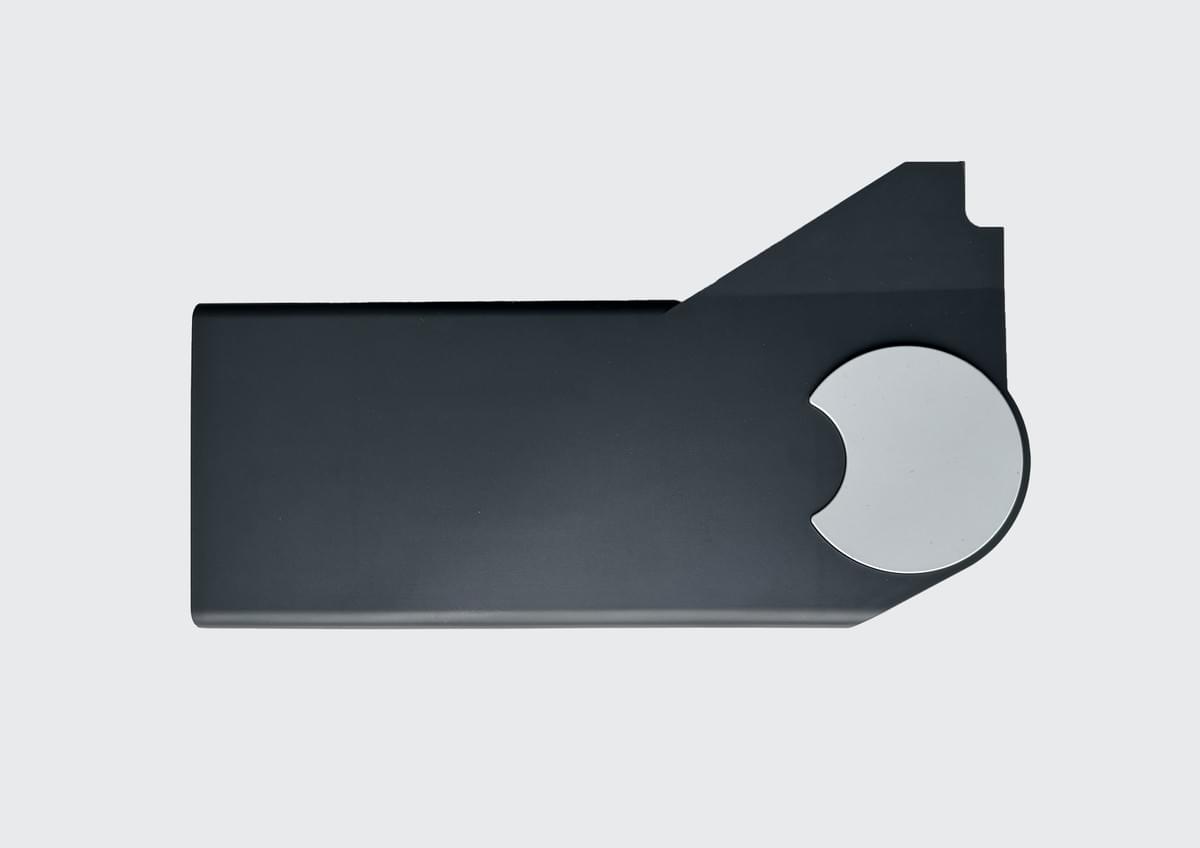

Decorative cover
The color of the decorative lid is dark gray, which looks simple and durable.
The Angle between the door and the cabinet is 90°.
-The Angle between the cabinet doors can be 45° and 90°-
What makes it unique
Let me show you

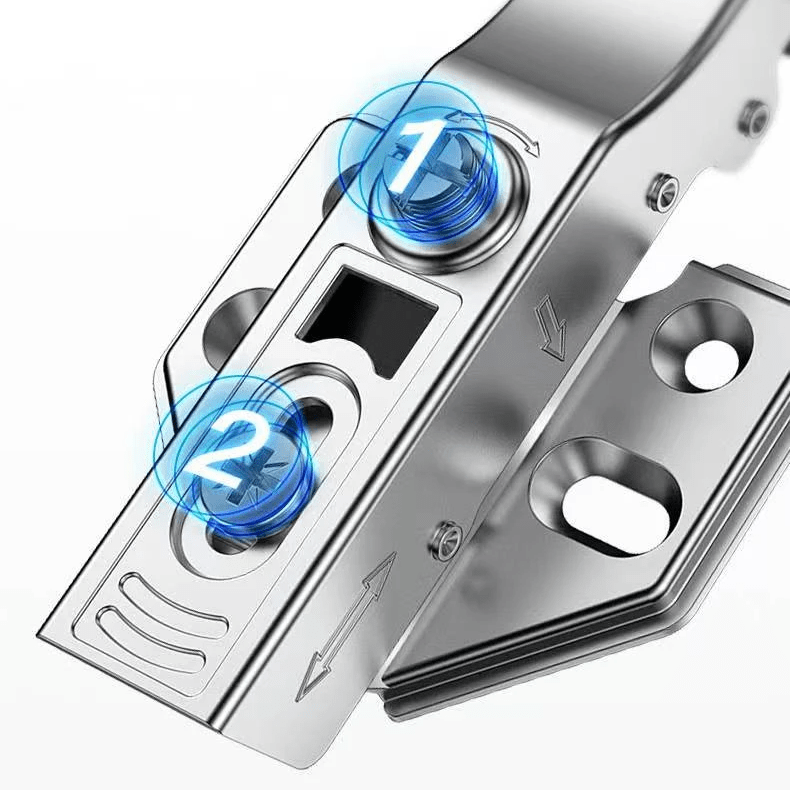

Easy adjustment
efficient installation
The cabinet door is adjusted 0-25mm.
The front and rear of the cabinet door are adjusted 0-7mm.

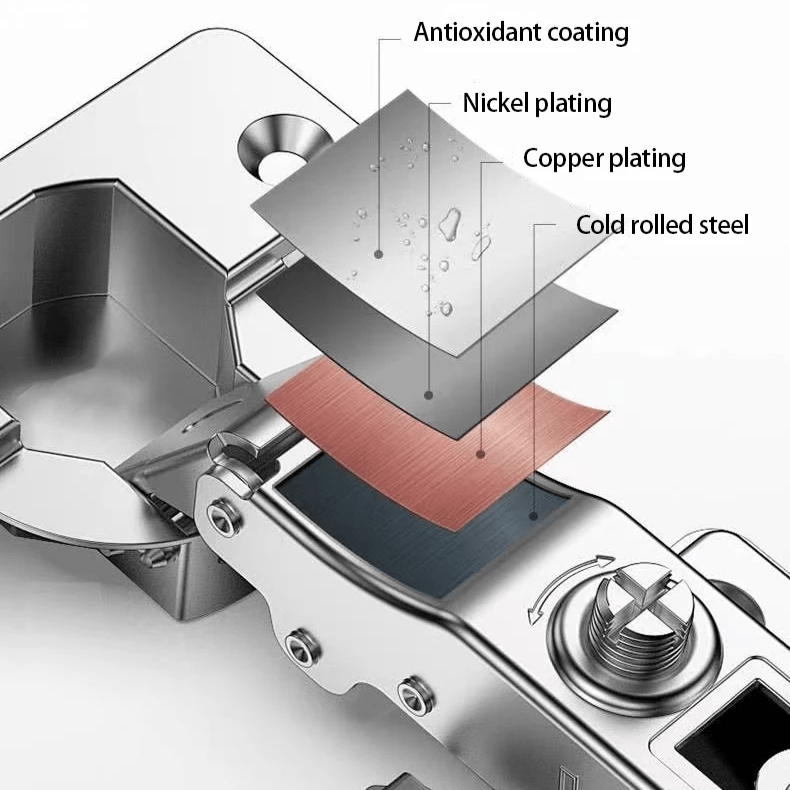

Multilayer process
The rust resistance is strengthened, and the cold-rolled steel has good toughness and is more durable.

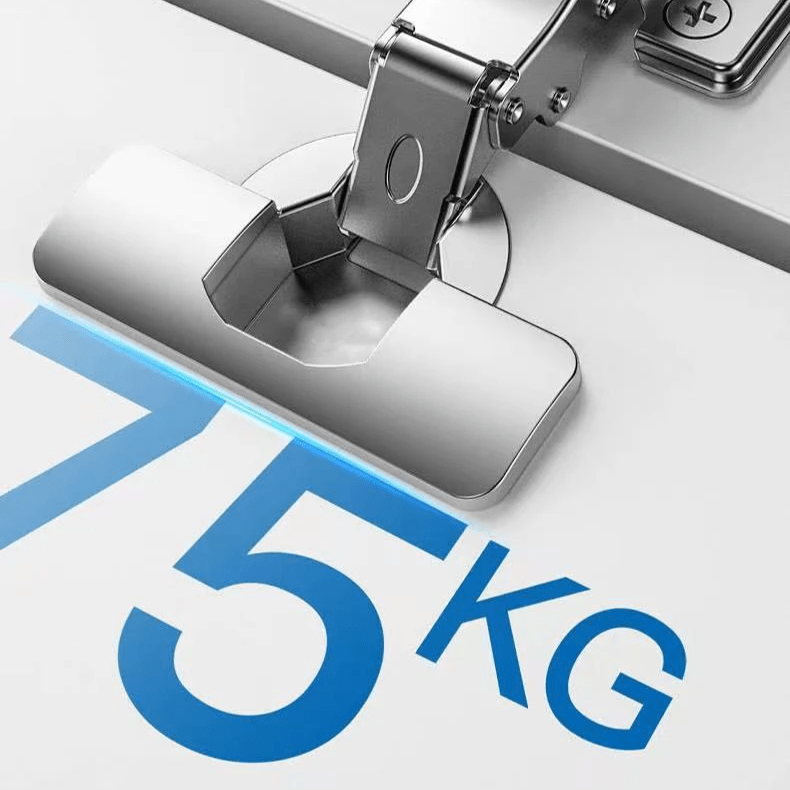

Super load-bearing force
75KG super load-bearing, solid and stable, long-term use without deformation.

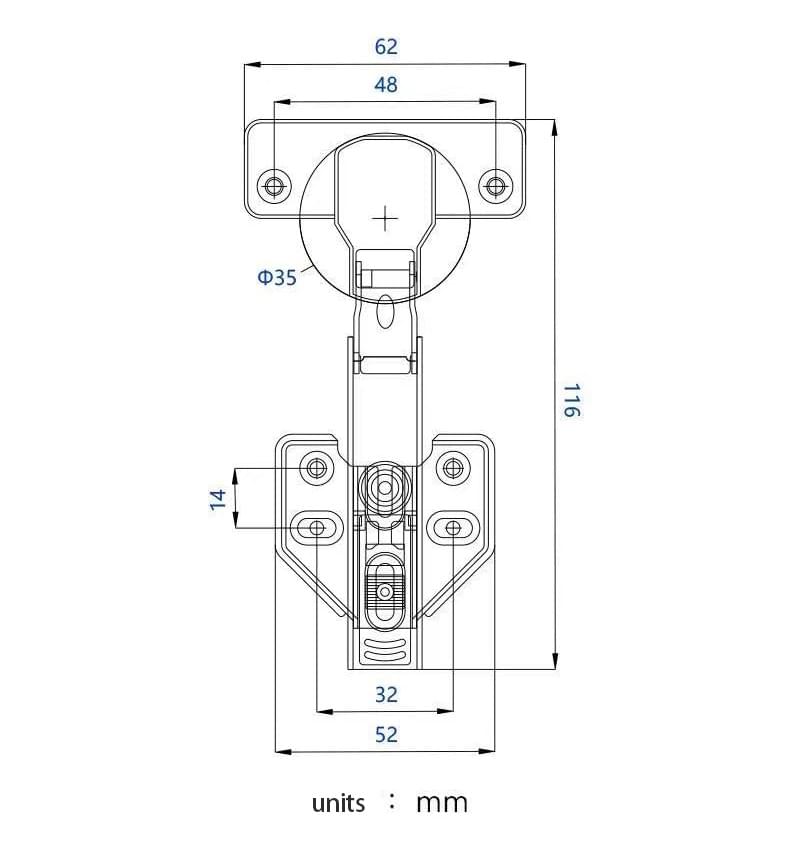

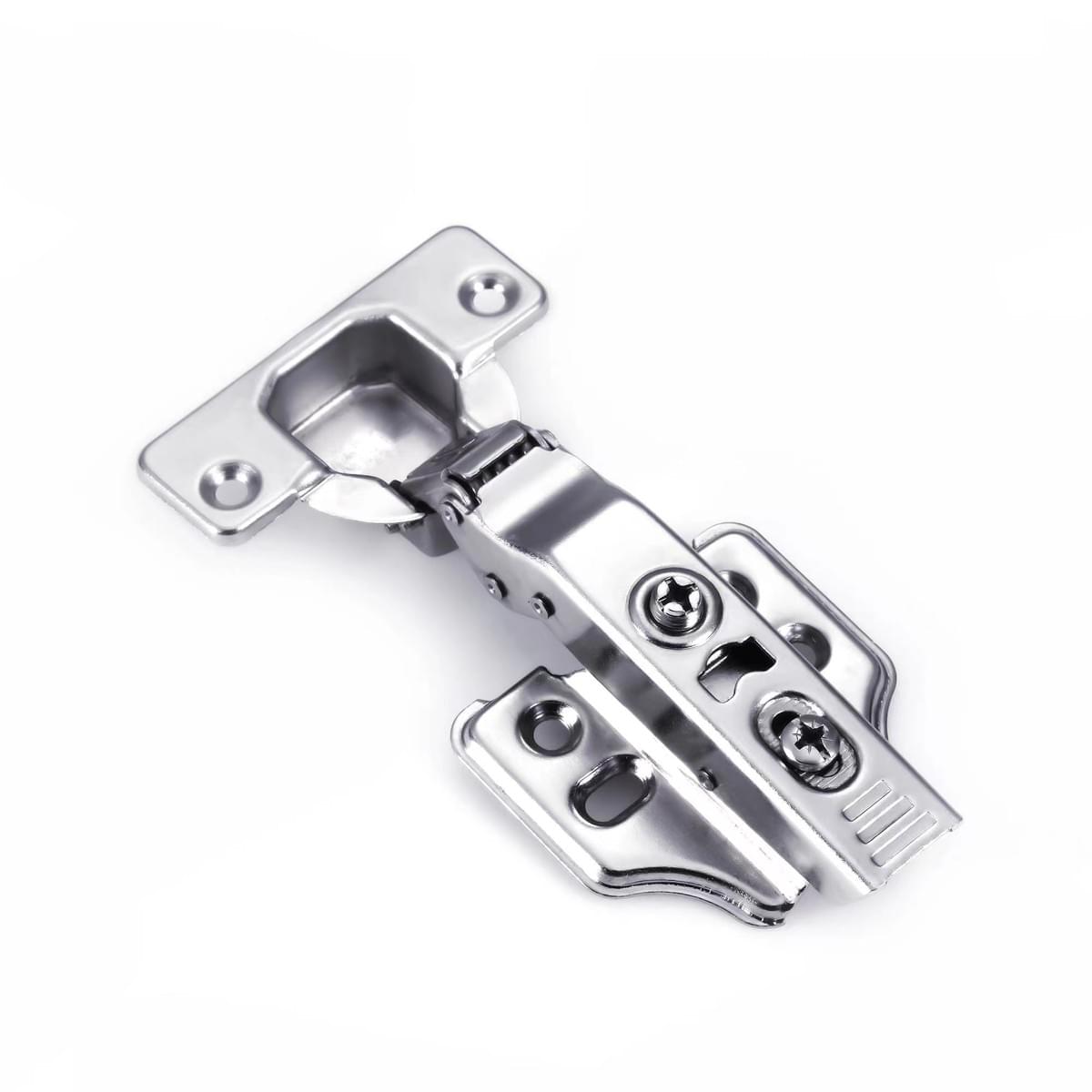

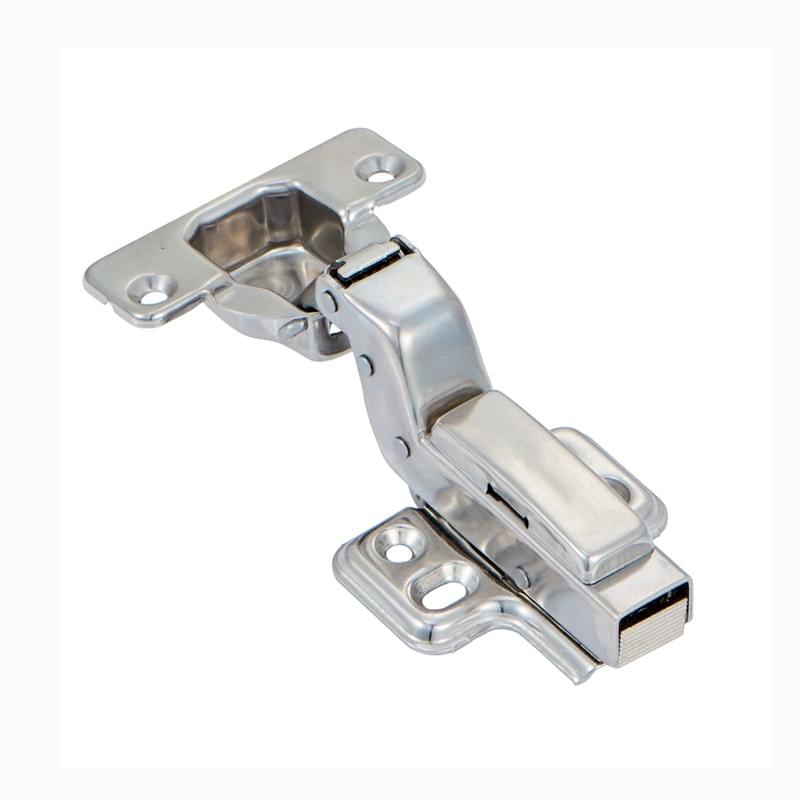

Hinge
Material: cold rolled steel
Installation mode: solid installation
Material thickness: 1-1.2mm
Opening Angle: 90-110°
Hinge cup diameter: 35mm
Cup depth: 11.5mm
Cover adjustment: 0-6mm
Door K value: 3-8mm
Door cover: 7-25mm
Characteristics: one stage force, two stage force
Color: nickel plated, zinc with gold gun black, bronze
Decorative cover
The color of the decorative lid is dark gray, which looks simple and durable.
The Angle between the door and the cabinet is 90°.
-The Angle between the cabinet doors can be 45° and 90°-
Force adjustment
After the left and right scales are consistent, manually pull the door panel to about 70 degrees. When the hand is loosened, the door panel can slowly bounce back, otherwise it is necessary to readjust the scale on both sides.

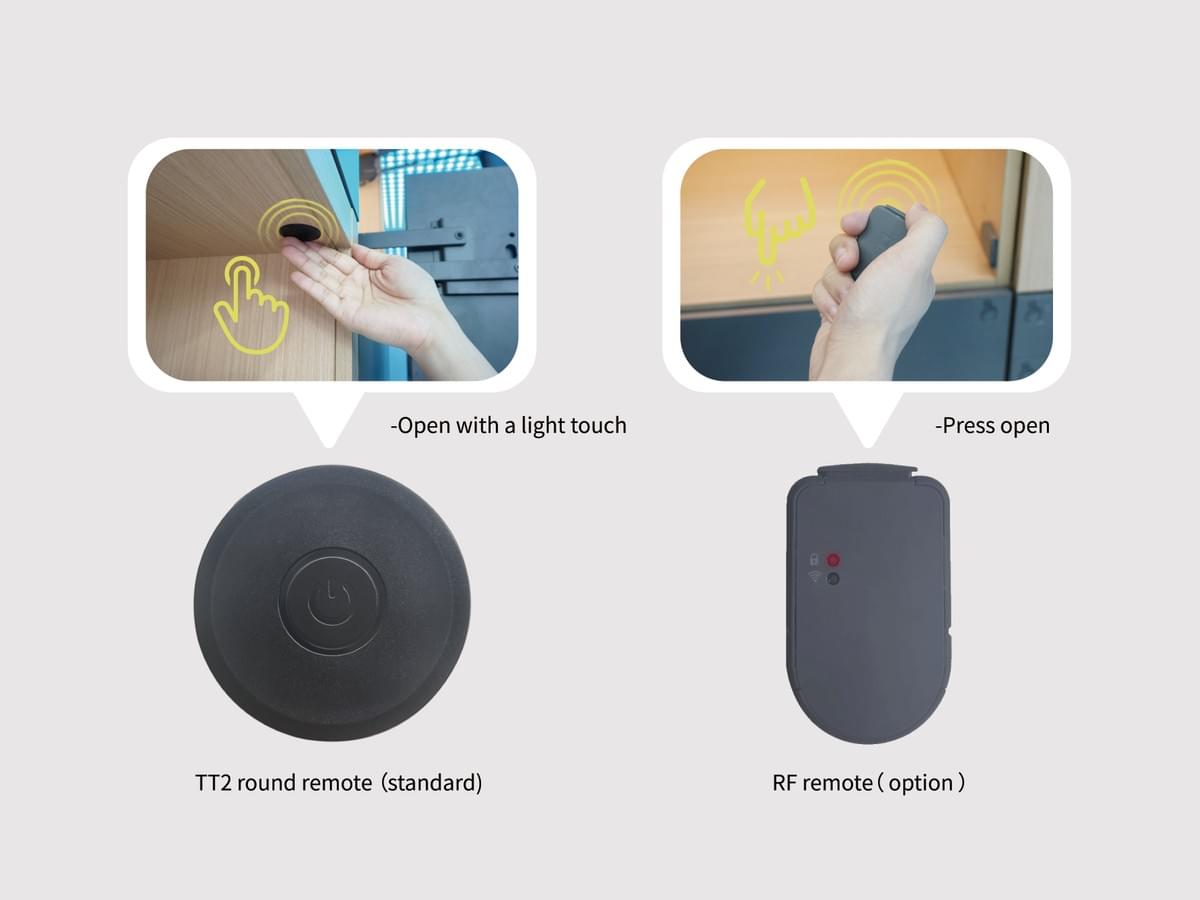

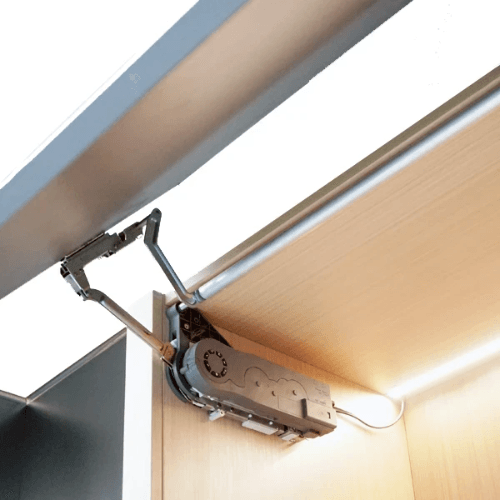

Push button switch
Without manual operation, the door can be opened or closed automatically with a gentle touch or the press of a button on the remote control.

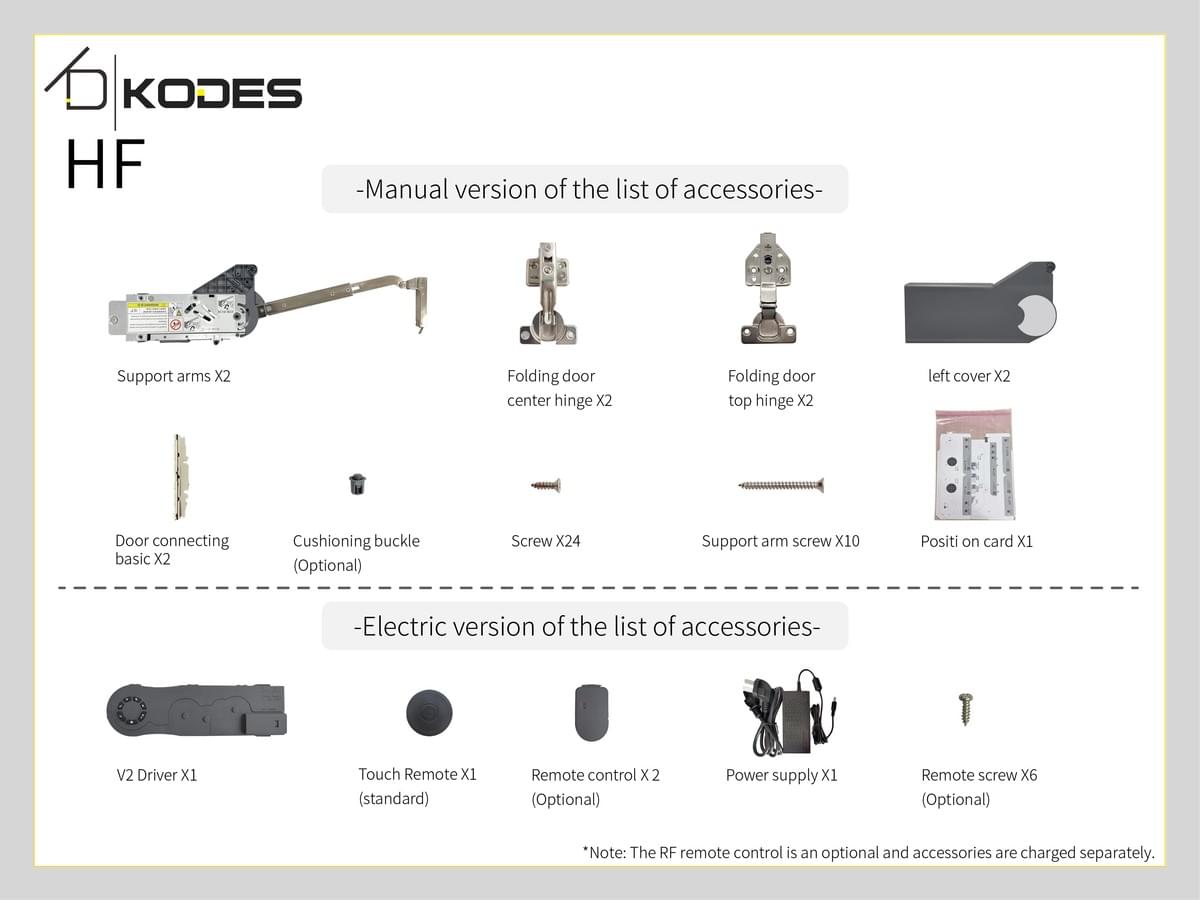

Parts list
Name, model, specification and quantity of parts or assemblies.
Support Lifting System
Electric
Smart
Manual
